Culvert threshold (Water Overlay)

Icon	Key	Unit	Description	Default value

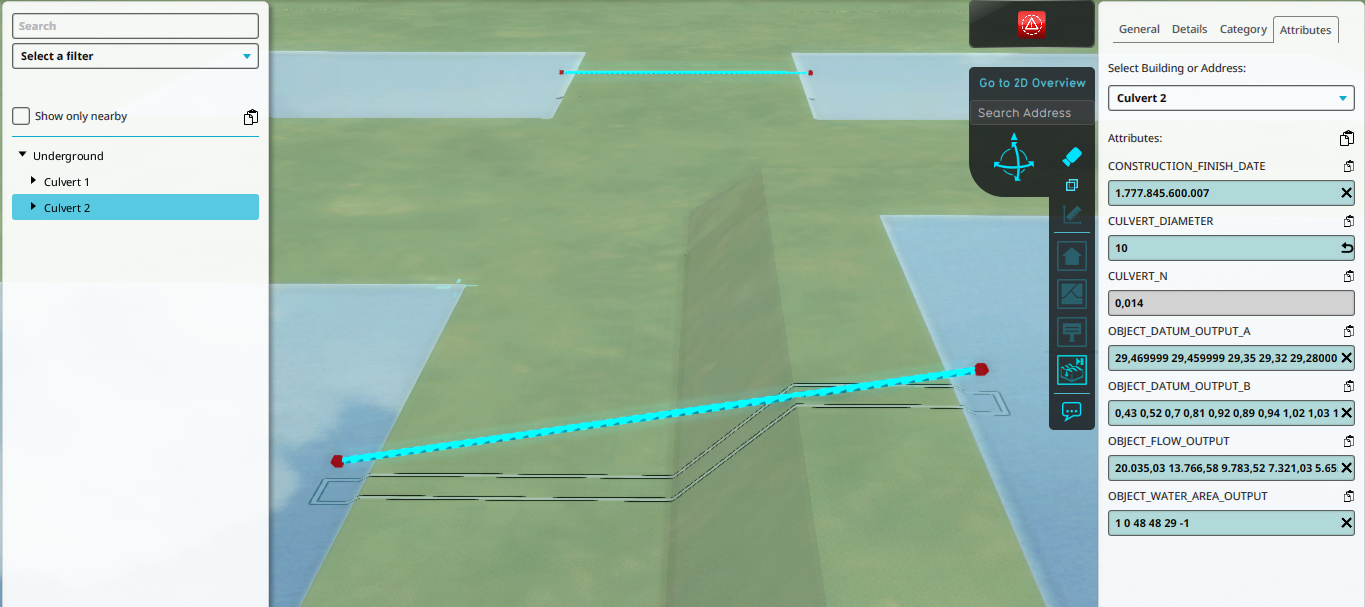

	CULVERT_THRESHOLD	m + datum	The height of the inner side of the culvert's underside (or the threshold height at which water starts flowing through the culvert). When set to a level below the terrain height at either end-point, the culvert's threshold will automatically attain a value equal to that of the highest terrain found at either of its endpoints.	0

See also

• Culvert formula (Water Overlay)

---
